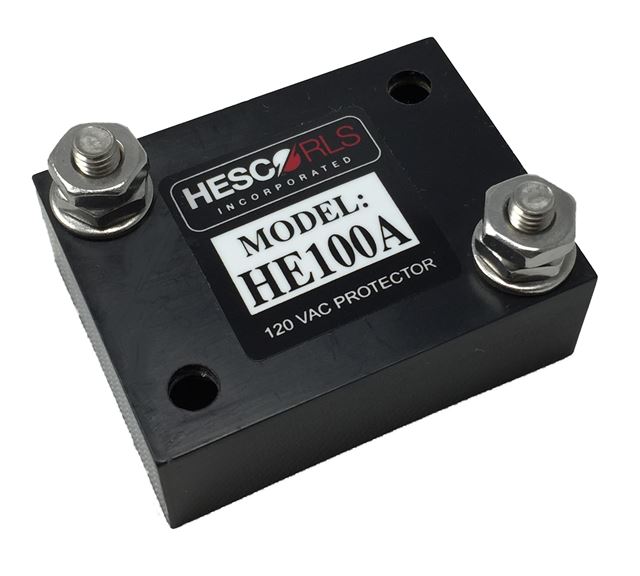

HE100A AC Surge Protector

HE100A AC Surge Protector
Click for larger view

For more details call:
1-800-547-4868

Description

The HE100A is a fully encapsulated, solid state arrestor, used for medium duty protection of a 120 VAC power line. The HE100A is a stand-alone device suitable for use in either exposed or protected environments. With no follow current, the HE100A can repeatedly dissipate 20KA (8 x 20us) surges and immediately self-restore, ready to protect against the next surge.

Download Specifications Sheet (PDF}

Specifications

Peak Surge Current, 8 x 20us *20KA
Repetitive Peak Surge Current, 8 x 20us *20KA
Peak Surge Voltage @ 10KA, 8 x 20us 650 Volts
Energy 270 Joules
Power Dissipation 1.5 Watts (max.)
Continuous AC Voltage 130VAC
Peak Voltage @ 1ma 212 Volts
Typical Capacitance 4000 pF
Connections stud (#10-32)
Operating Temperature -40°C to +85°C
Follow Current none
*The 8 x 20us waveform is a standard test waveform

Features

  • No Follow Current
  • 5 Nanosecond Response Time
  • 20KA Capability (8 x 20 us)
  • Automatic Recovery
  • 120 VAC, 60 AMP Service
  • Encapsulated
  • Flame Retardant Epoxy
  • Long Life
  • Compact in Size
