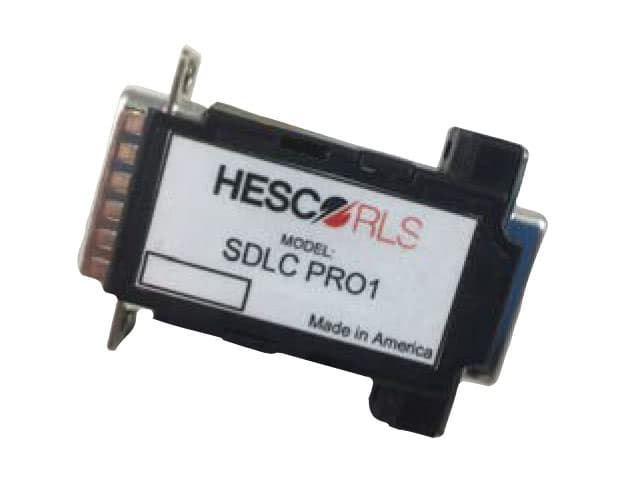

SDLC PRO1

SDLC PRO1
Click for larger view

For more details call:
1-800-547-4868

Description

The SDLC PRO1 is a silicone avalanche diode based, 15 pin surge protector designed to protect NEMA TS-2 synchronous data link control circuits.

This surge protector was designed to tightly limit the level of transients passed through data lines.

Download Specifications Sheet (PDF}

Specifications

Operating Voltage 5 VDC
Operating Current 1.5 A
Clamping Voltage Forward < 8 VDC
Reverse < 7 VDC
Peak Pulse Current 60 A
Frequency Range 0 to 20 MHz
Insertion Loss < 0.1 dB @ 20MHz
Connection Type DB-15
Operating Temp -40° to + 85°C

Features

  • Port Mounted
  • Positive and Negative Clamping
  • Easy Installation
  • 5 Year Warranty

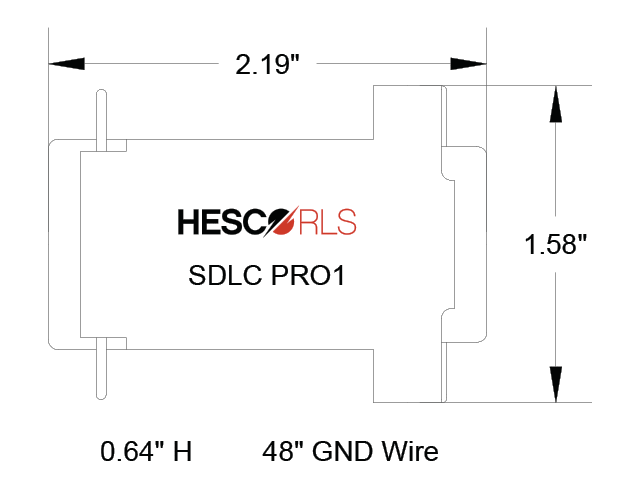

Dimensions

Click for larger view

Pin Assignments

Pin # Function
1 Rx Data +
2 Logic Ground
3 Rx Clock +
4 Logic Ground
5 Tx Data +
6 Logic Ground
7 Tx Clock +
8 Logic Ground
9 Rx Data -
10 Port 1 Disable
11 Rx Clock -
12 Earth Ground
13 Tx Data -
14 Reverse
15 Tx Clock -
