HE6LC-6 Vehicle Loop Detector Surge Protection

For more details call:
1-800-547-4868

Description

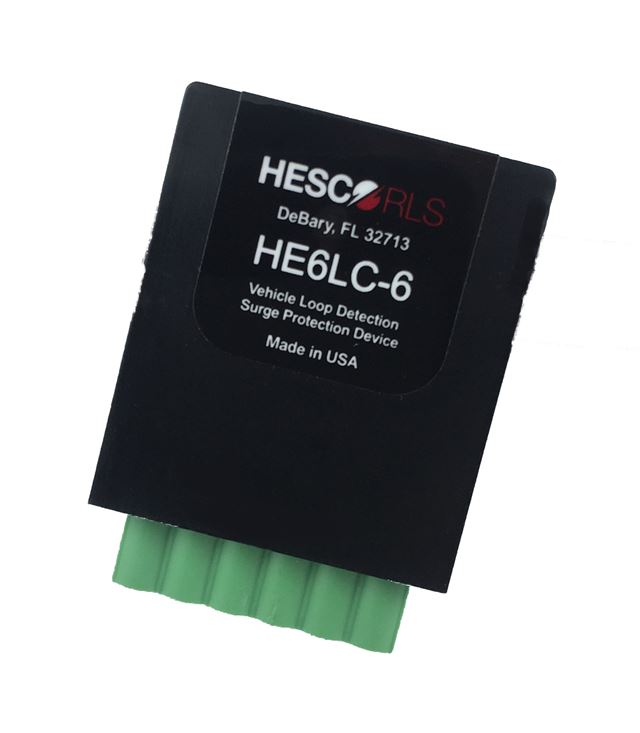

The HE6LC-6 is a modular device designed specifically to protect the signal inputs to the vehicle detector unit.  Specially selected solid state clamping elements have been chosen for the electrical design of the HE6LC-6.  These elements have been arranged in such a manner as to appear virtually invisible to the detector unit, while offering the maximum surge protection available on the market today.

The HE6LC-6 utilizes a 6 position, 5.08mm Euroblock style connector.  A single unit is used to protect two loop detectors.  Installation of these devices should be as close to the point where the detector loop wires enter the cabinet.



Download Specifications Sheet (PDF}

Specifications

Peak Surge Current (6 times)
Diff. Mode 400A (8x20uS)
Com. Mode 1000A (8x20uS)
Occurrences 500 @ 200A (8x20uS)
Response Time <5nS
Input Capacitance <20pF
Temperature -40 to 85°C
Weight <3 oz.
Operation Voltage 14V

Clamp Voltage
Diff. Mode (@ 400A) 27V
Com. Mode (@ 1000A) 35V

SPD Technology Sidactor

Features

  • Total Solid State Design
  • Epoxy Encapsulation
  • Designed for Digital Loop Detectors
  • Recovers Autmatically
  • Designed for 6 position, 5.08mm sockets
  • Compact in size
  • Easy Installation
